BMS - Battlespace Management System¶

The BMS (Battlespace Management System) is an example external application that demonstrates the GVA Display Extension Service interface. It provides a fully functional map-based interface for battlespace management integrated with the GVA HMI.

Overview¶

The BMS application showcases:

Third-party session registration with the HMI
Map tile rendering with multiple layer options
Military symbol (MIL-STD-2525D) overlay and interaction
Touch/mouse event forwarding from HMI to external app
Soft key (bezel button) integration

Screenshots¶

Map Layers¶

The BMS supports multiple map tile providers:

Satellite¶

ESRI World Imagery satellite view.

BMS Satellite View

Topographic¶

ESRI World Topographic map with elevation contours.

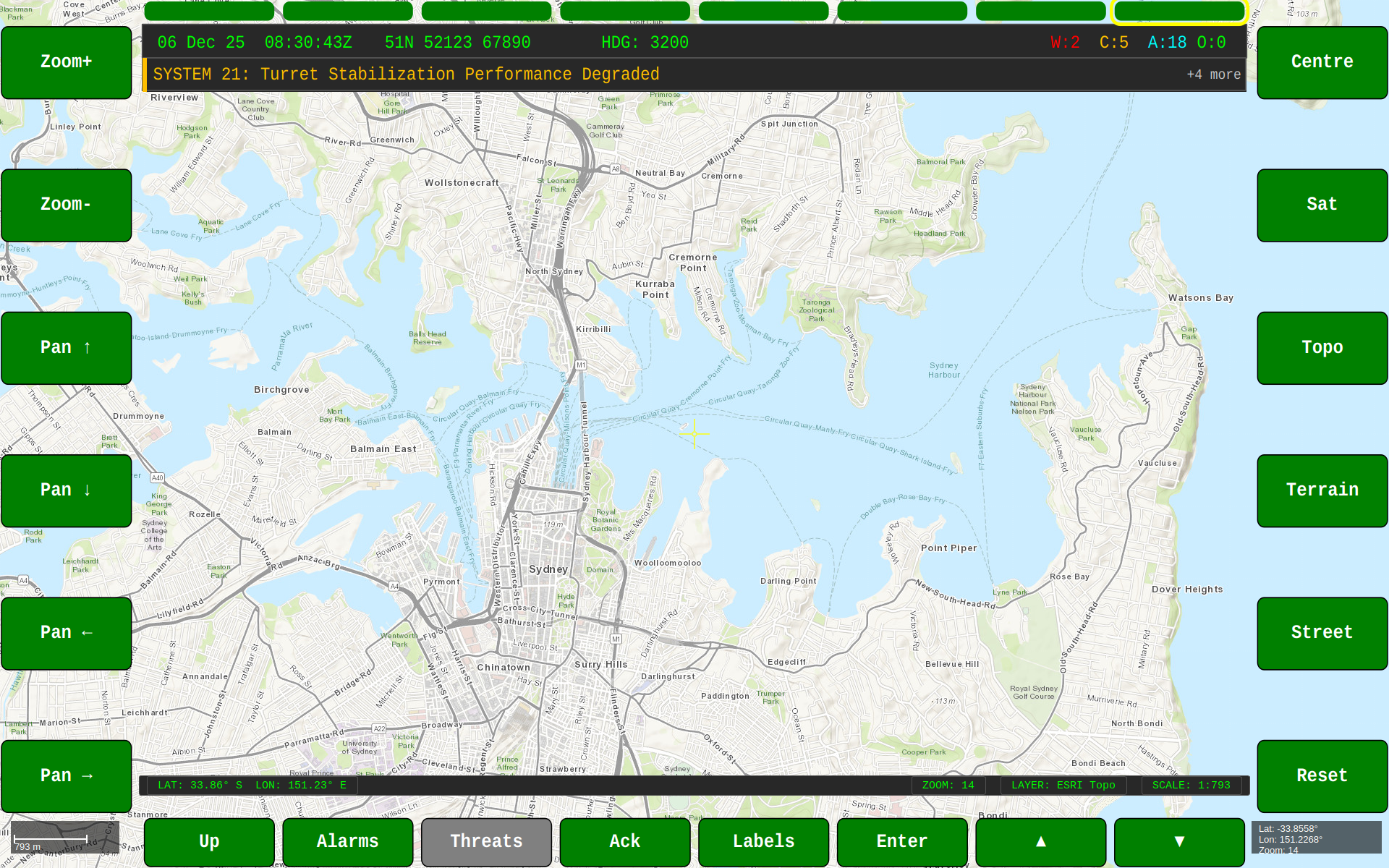

BMS Topographic View

Terrain¶

OpenTopoMap terrain view with shaded relief.

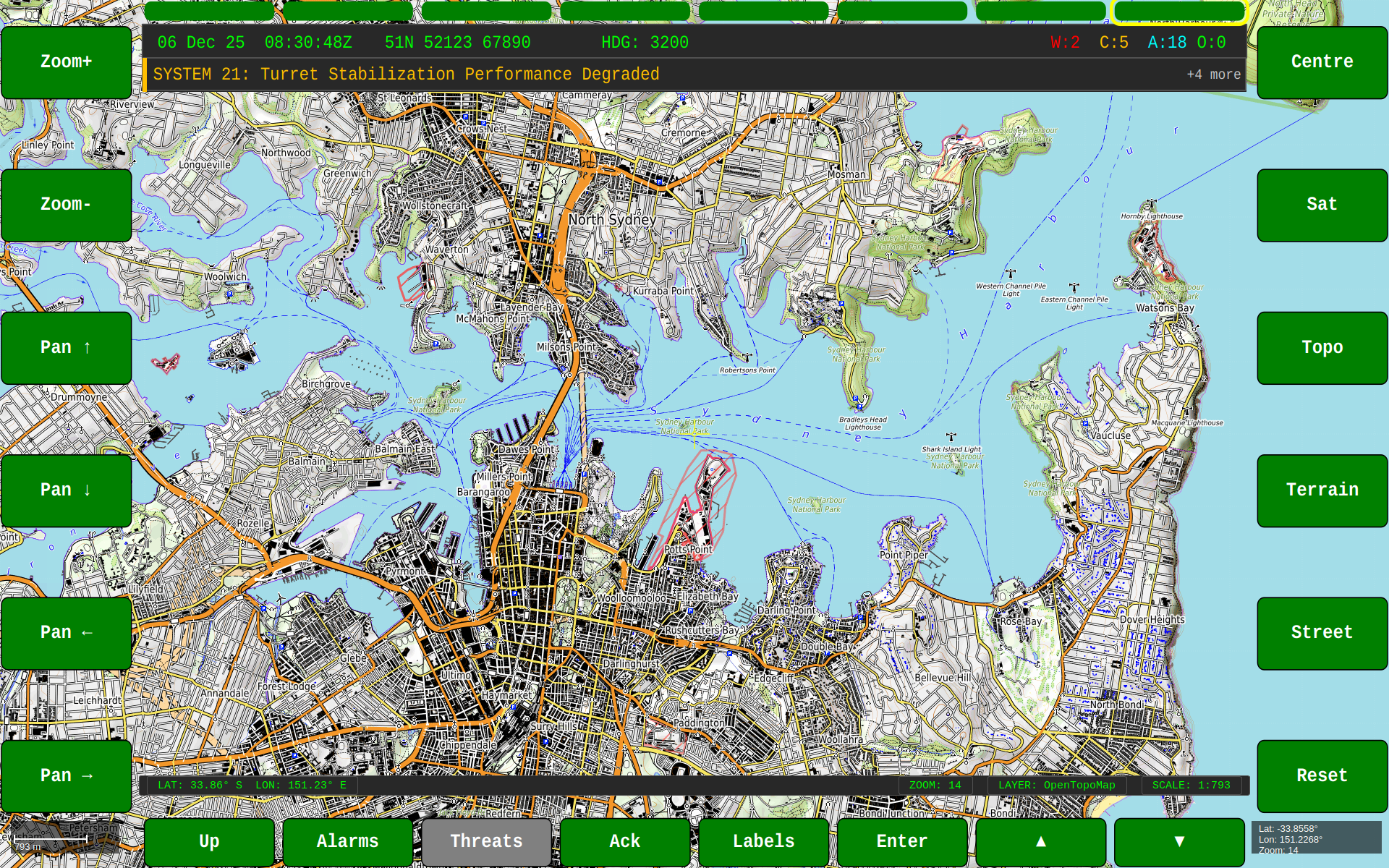

BMS Terrain View

Street¶

OpenStreetMap street map view.

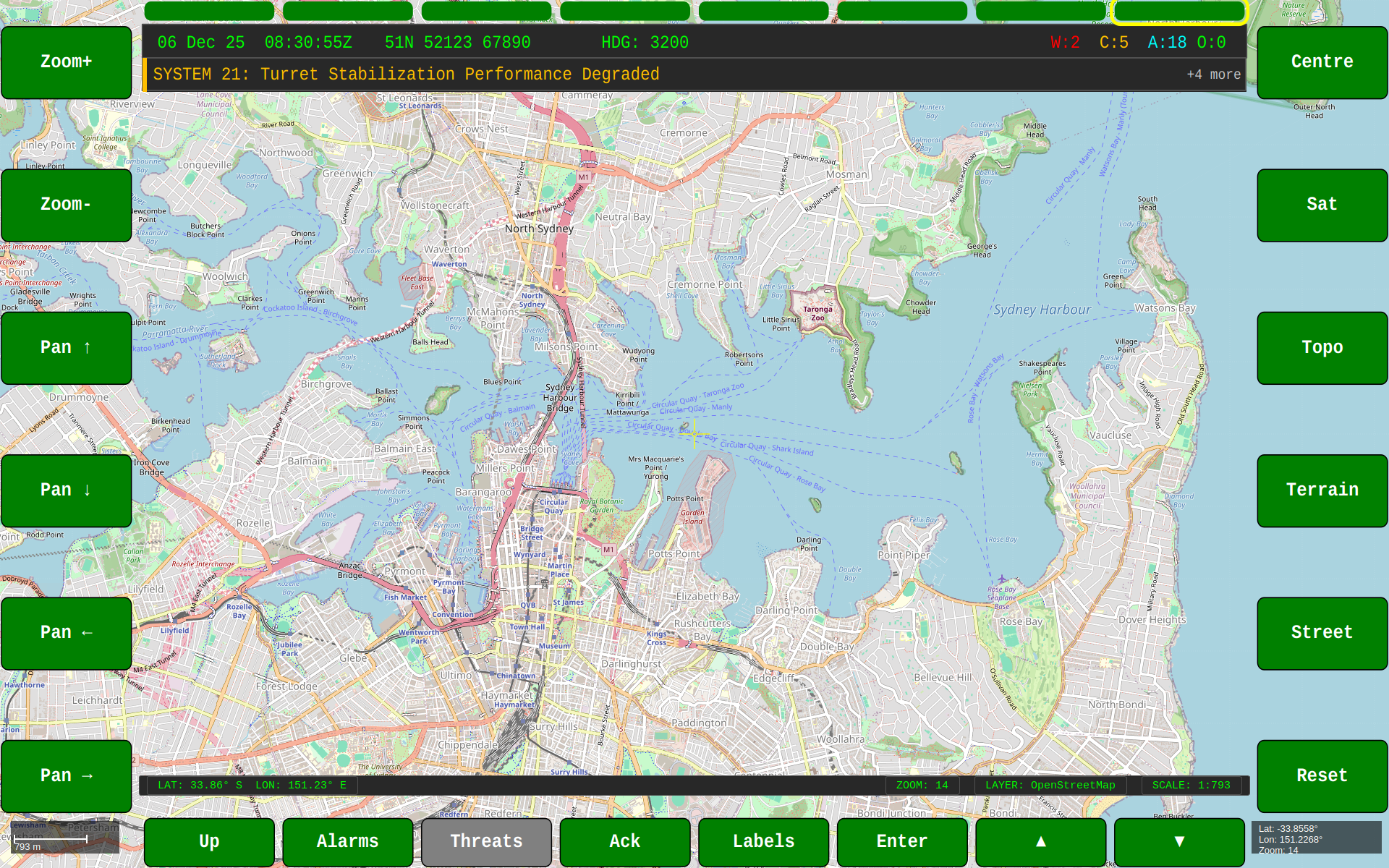

BMS Street View

Symbol Interaction¶

The BMS provides a radial menu for interacting with military symbols on the map:

BMS Radial Menu

The radial menu provides options to:

Delete - Remove the symbol from the map
Note - Add or edit a text annotation
Waypoint - Set a navigation waypoint
Move - Reposition the symbol

Symbol Notes¶

Symbols can have notes attached that display as tooltips:

With Note¶

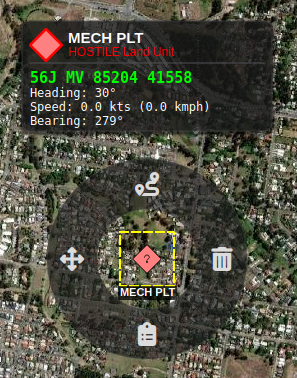

Symbol with Note

Without Note¶

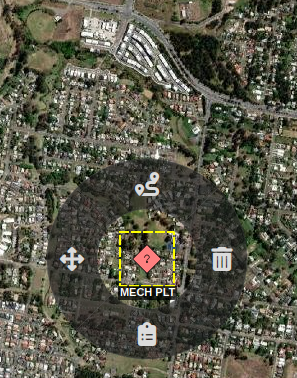

Symbol without Note

Connection States¶

Waiting for External Application¶

When the HMI is waiting for the BMS application to connect:

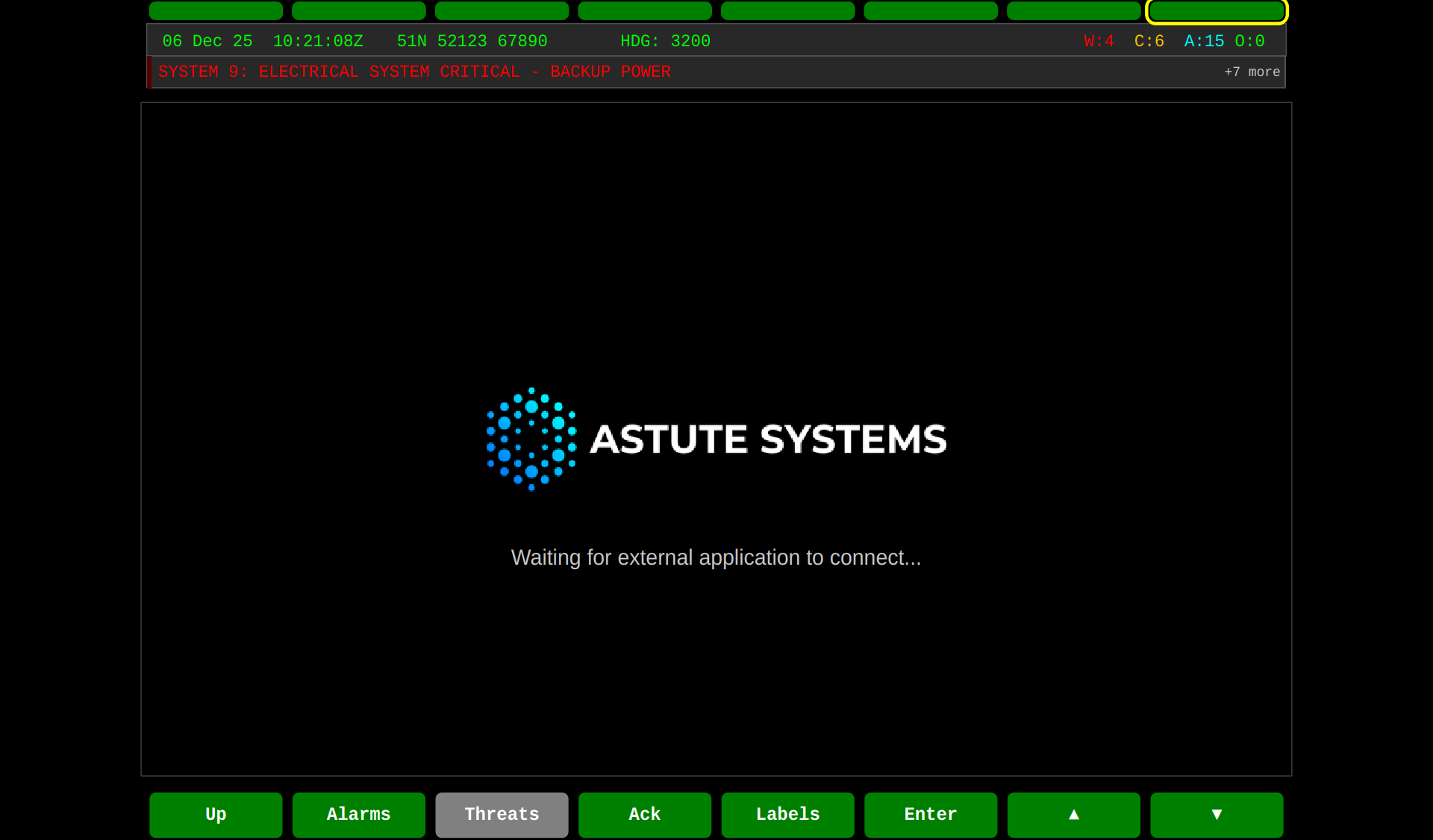

Waiting for External Application

Dial Move Not Displayed¶

Radial menu in hidden state during map navigation:

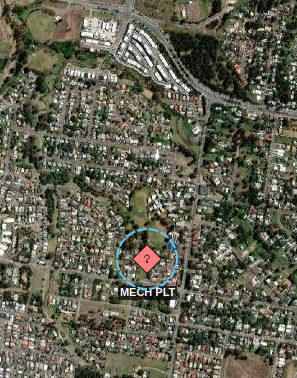

Dial Not Displayed

Running the BMS¶

Prerequisites¶

GVA HMI must be running
Registry service must be running
Network connectivity on DDS domain 0

Standalone Mode¶

Run the BMS application directly:

cd build/bin
./gva-qt6-app-bms

The BMS will:

Register with the Registry service to obtain a Resource ID
Publish its Third Party Session to the HMI
Configure bezel button labels (F1-F12) for map controls
Display fullscreen and wait for HMI connection

With HMI Integration¶

For full integration with the GVA HMI:

cd build/bin

# Start services
./gva-qt6-registry &
./gva-qt6-alarms &

# Start BMS
./gva-qt6-app-bms &

# Start HMI
./gva-qt6-hmi &

Or use the provided script:

./run_gva_bms.sh

Accessing from HMI¶

Start the HMI and BMS as shown above
Press F28 (BMS) on the HMI function select bar
The HMI control area will display "Waiting for external application..."
Once connected, the BMS map view appears in the HMI

Controls¶

Bezel Buttons (F1-F12)¶

The BMS configures the side bezel buttons for map navigation:

Button	Label	Function
F1	Zoom+	Zoom in on map
F2	Zoom-	Zoom out
F3	Pan ↑	Pan map north
F4	Pan ↓	Pan map south
F5	Pan ←	Pan map west
F6	Pan →	Pan map east
F7	Centre	Centre on default location
F8	Sat	Switch to satellite imagery
F9	Topo	Switch to topographic map
F10	Terrain	Switch to terrain view
F11	Street	Switch to street map
F12	Reset	Reset to default view

Mouse/Touch Controls¶

When the BMS is active in the HMI:

Click/Tap - Select symbol or place marker
Drag - Pan the map
Scroll wheel - Zoom in/out
Long press on symbol - Open radial action menu

Architecture¶

DDS Topics¶

The BMS uses the following DDS topics:

Topic	Direction	Purpose
`Third_Party_Session`	Publish	Session registration
`Hard_Button_Label`	Publish	Button label configuration
`Hard_Button_Event`	Subscribe	Button press events
`Widget_Interaction_Event`	Subscribe	Mouse/touch events
`requestResourceId`	Publish	Resource ID request
`supplyResourceId`	Subscribe	Resource ID allocation
`setOperatingMode`	Publish	Operating mode changes

Session Flow¶

sequenceDiagram participant BMS as BMS App participant REG as Registry participant HMI as HMI Note over BMS: Application starts BMS->>REG: requestResourceId (UUID) REG->>BMS: supplyResourceId (ID: 458) BMS->>BMS: setOperatingMode (Operational) BMS->>HMI: Third_Party_Session Note right of BMS: descriptor="BMS|Battlespace..." BMS->>HMI: Hard_Button_Label (F1-F12) Note right of BMS: Zoom, Pan, Layer buttons HMI->>HMI: Display BMS in control area loop User interaction HMI->>BMS: Hard_Button_Event (F1-F12) BMS->>BMS: Handle map control HMI->>BMS: Widget_Interaction_Event Note right of HMI: Mouse position, clicks BMS->>BMS: Handle map interaction end Note over BMS: Application closes BMS->>HMI: setOperatingMode (Off) HMI->>HMI: Remove BMS session

Configuration¶

Map Tile Cache¶

Map tiles are cached locally in:

~/.cache/gva-bms/tiles/

Default Location¶

The BMS defaults to Brisbane, Australia (-27.4698, 153.0251) at zoom level 10. This can be modified in the source code or via command-line arguments.

Military Symbols¶

Demo symbols are loaded from:

build/bin/demo_symbols.json

The JSON file defines MIL-STD-2525D symbols with positions:

{
    "description": "Demo military symbols for BMS application",
    "symbols": [
        {
            "id": "friendly-infantry-1",
            "sidc": "SFGPUCI----E***",
            "name": "1st Infantry",
            "latitude": -27.4698,
            "longitude": 153.0251,
            "note": "Main force element"
        }
    ]
}
