Bohemian - SysML Model Viewer¶

Bohemian is a SysML model viewer and IDL code generator for IBM Rhapsody projects. It provides a graphical interface for exploring SysML models and can automatically generate OMG IDL files suitable for DDS deployment in GVA systems.

Overview¶

Bohemian provides the following capabilities:

• Rhapsody Project Loading: Parse and display IBM Rhapsody .rpyx project files and .sbsx model files
• Model Navigation: Tree-based navigation of packages, classes, types, and relationships
• Diagram Visualization: Interactive block diagram canvas showing class structures and dependencies
• IDL Code Generation: Export SysML models to OMG IDL format for DDS communication
• LDM Pattern Detection: Automatic detection of GVA Land Data Model patterns in models

Running Bohemian¶

Basic Usage¶

# Launch the GUI
./build/bin/bohemian

# Open a specific Rhapsody project
./build/bin/bohemian /path/to/project.rpyx

Command Line Options¶

Headless IDL Export¶

For automated builds or CI/CD pipelines, Bohemian can export IDL files without launching the GUI:

# Export IDL from a project file
./build/bin/bohemian --export-idl ./output/idl /path/to/project.rpyx

# Export IDL from a directory of .sbsx files
./build/bin/bohemian --export-idl ./output/idl /path/to/model/directory

User Interface¶

Main Window Layout¶

The Bohemian interface consists of three main panels:

1. Model Tree (left): Hierarchical view of all model elements
2. Diagram Canvas (center): Visual representation of blocks and relationships
3. Properties Panel (right): Detailed information about selected elements

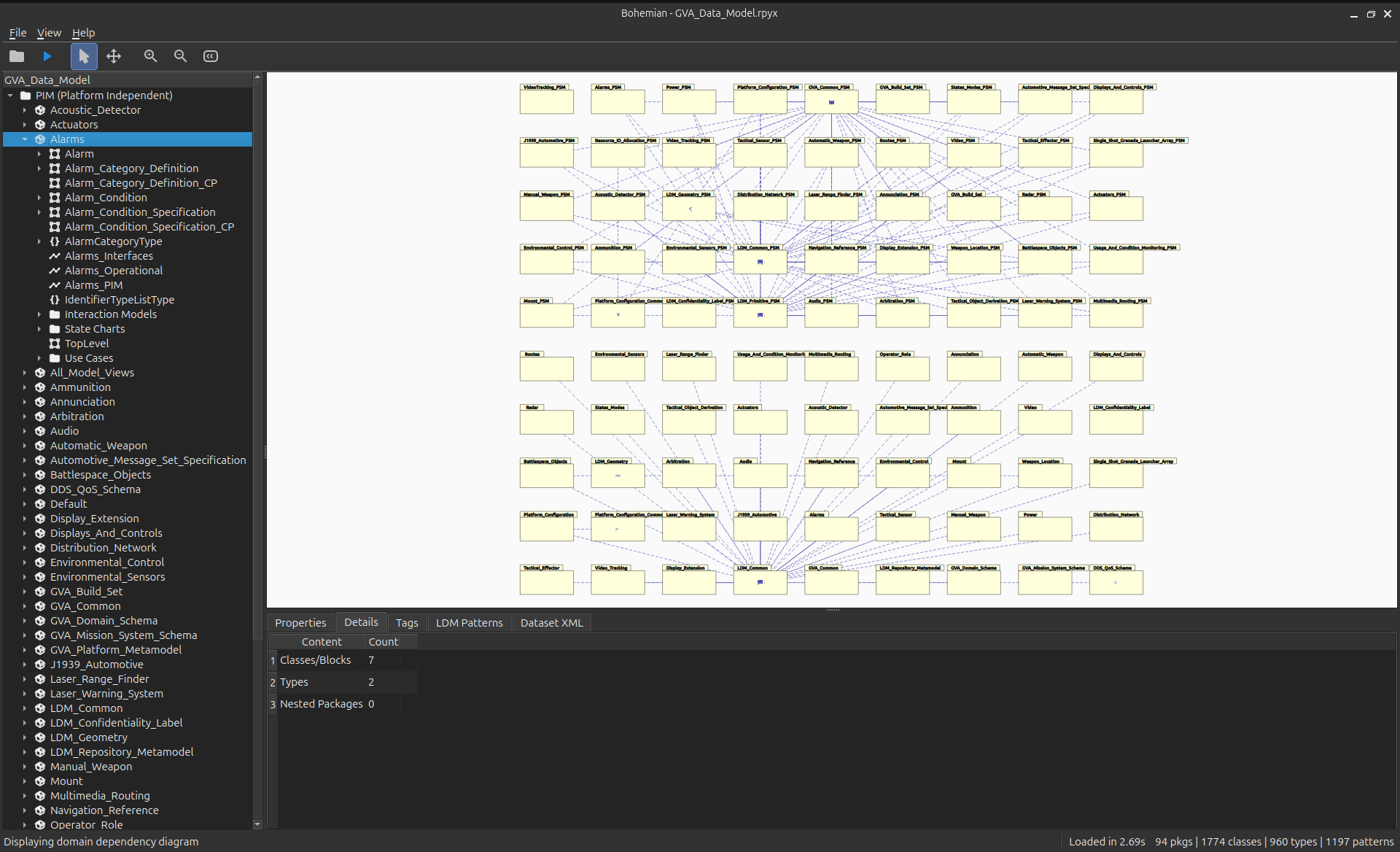

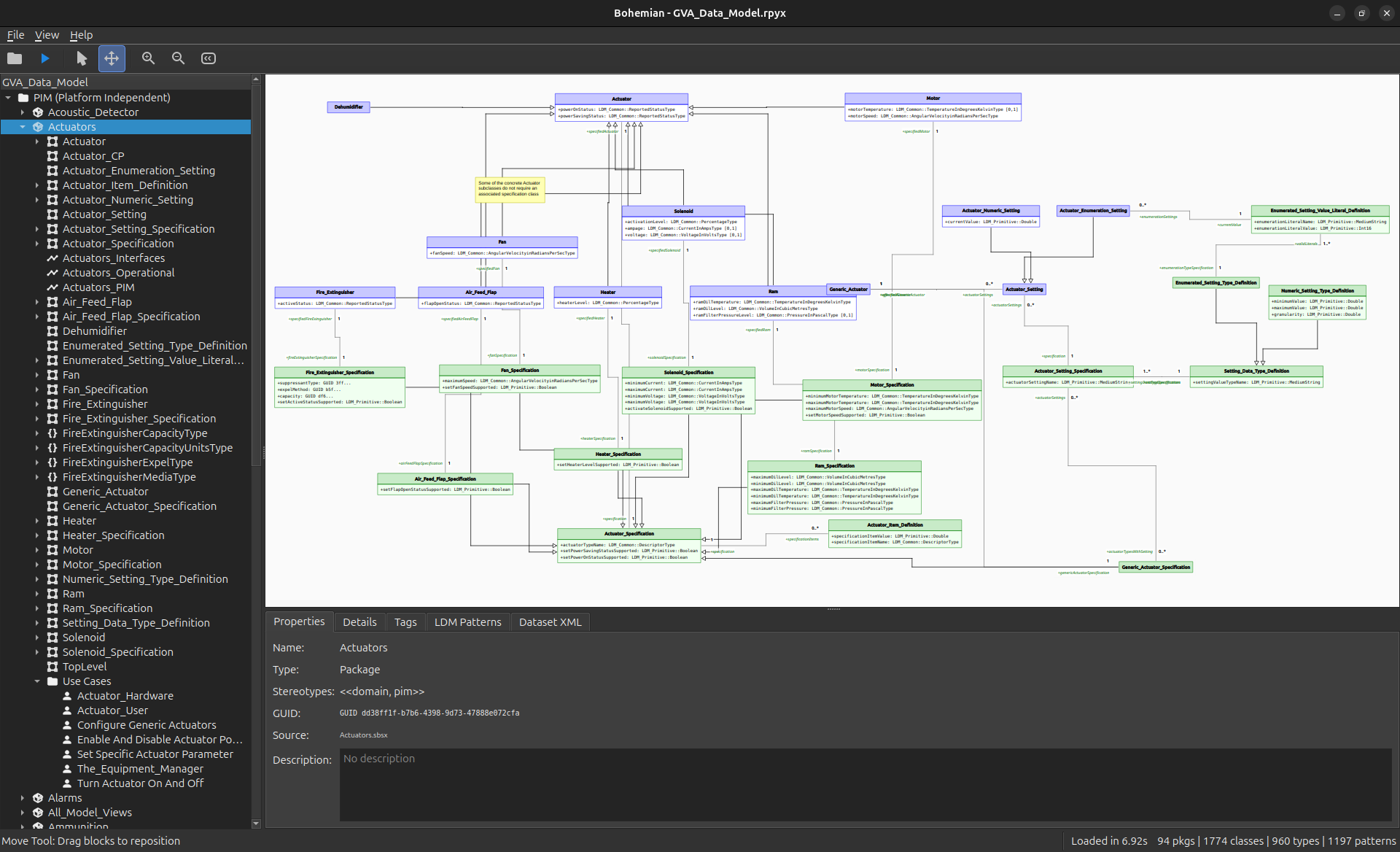

Class Diagram View¶

The diagram canvas displays SysML blocks with their attributes, operations, and relationships:

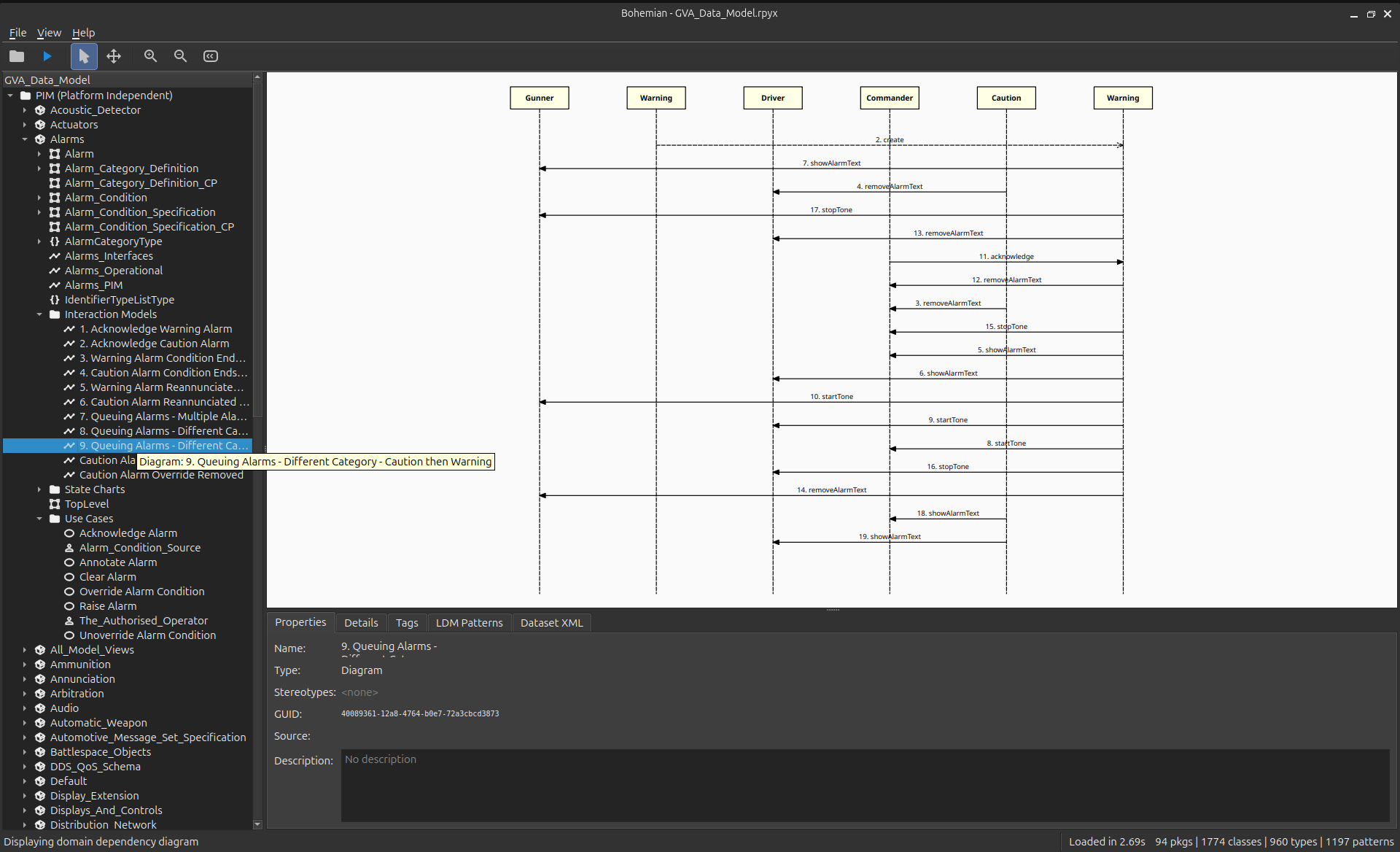

Interaction Diagram View¶

Bohemian supports visualization of SysML interaction models (sequence diagrams) showing message flows between objects:

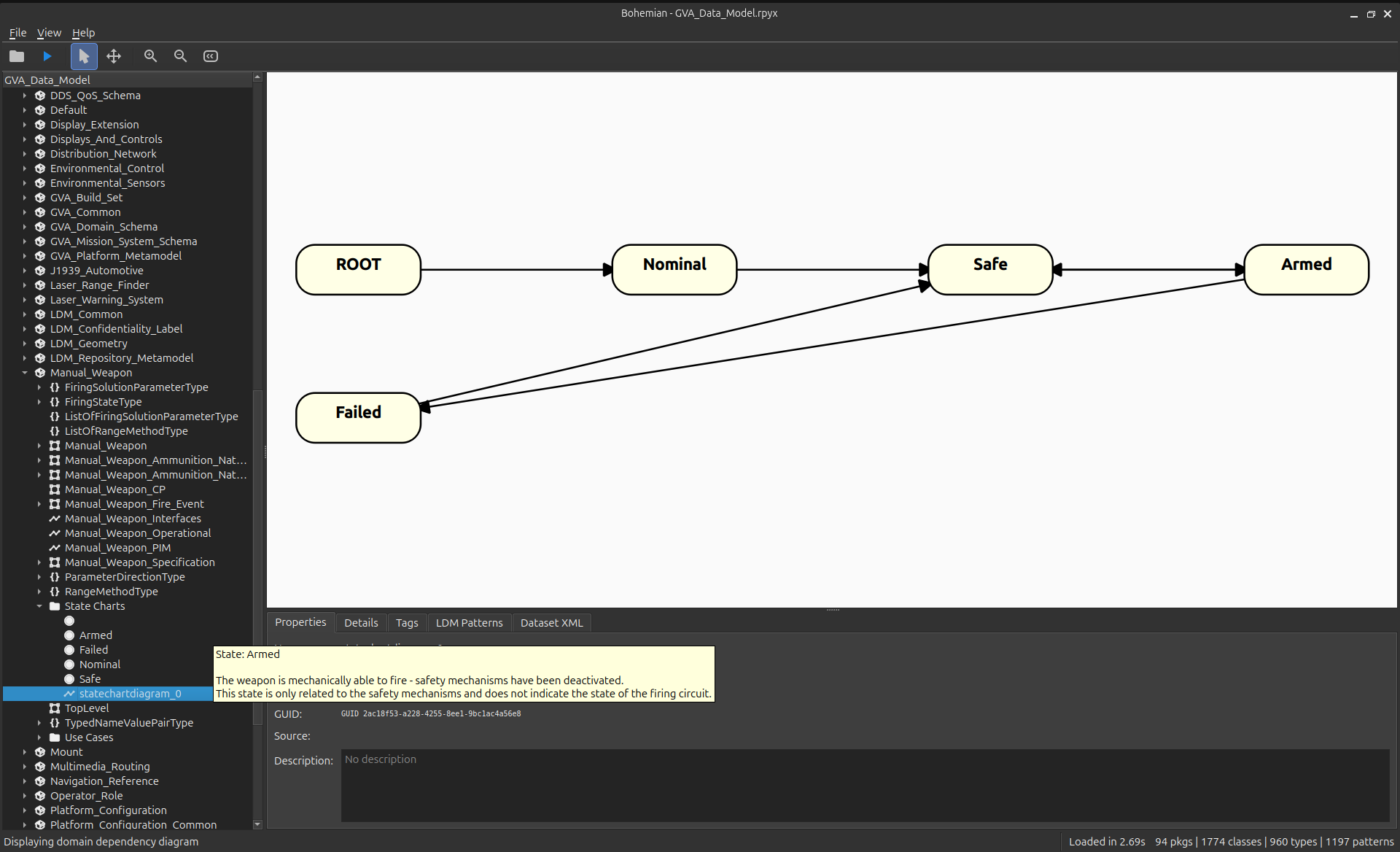

State Chart View¶

State machine diagrams display the behavioral states and transitions for classes:

View Controls¶

IDL Code Generation¶

Bohemian generates OMG IDL files following the GVA Translator Guide (Issue 1.2) mapping rules:

Using the Export Dialog¶

1. Open a Rhapsody project using File > Open Project or drag-and-drop
2. Navigate the model tree to verify the structure
3. Select File > Export IDL... to open the export dialog
4. Choose the output directory
5. Click Export to generate IDL files

Export Options¶

The IDL exporter supports several configuration options:

• Generate Comments: Include element descriptions from the model
• Generate @key Annotations: Add DDS key annotations for topic identification
• Generate DDS Annotations: Add @appendable, @mutable, @autoid, @optional annotations
• Generate Topic Constants: Create KC_*_TopicName constants for DDS topics
• Generate Include Guards: Add #ifndef/#define header guards

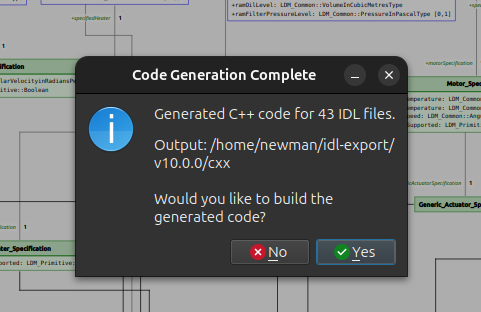

Building Generated IDL¶

After exporting IDL files, compile them using the AstuteDDS IDL compiler:

Using astutedds-idl¶

# Generate C++ code from exported IDL files
astutedds-idl -o ./generated/cpp -I ./ldm/UK/GVA/v10.0.0/IDL Alarms.idl

# Compile multiple IDL files with include paths
astutedds-idl -o ./generated/cpp \
    -I ./ldm/UK/GVA/v10.0.0/IDL \
    -I ./ldm/UK/GVA/Common \
    Sensors.idl Actuators.idl

# Generate Python bindings
astutedds-idl -l python -o ./generated/python Alarms.idl

AstuteDDS IDL Compiler Options¶

Using the LDM SDK Build System¶

Alternatively, the LDM SDK's CMake configuration will automatically compile IDL files:

cd /path/to/ldm
mkdir -p build && cd build
cmake ..
make -j$(nproc)

Workflow Example¶

A typical workflow for using Bohemian with the LDM SDK:

1. Design your data model in IBM Rhapsody using SysML
2. Export the project to a .rpyx file
3. Open the project in Bohemian to verify the structure
4. Generate IDL files using the Export function
5. Place IDL files in the appropriate ldm/ directory
6. Build the LDM SDK to generate C++ types and Qt wrappers
7. Use the generated QtWrapper*PubSub.h classes in your application

Troubleshooting¶

Project Won't Load¶

• Ensure the .rpyx file is a valid IBM Rhapsody project
• Check that all referenced .sbsx model files are accessible
• Verify file permissions allow read access

IDL Export Fails¶

• Confirm the output directory exists and is writable
• Check for circular dependencies in the model
• Review the console output for specific error messages

Diagram Not Displaying¶

• Try View > Zoom to Fit to center the diagram
• Use View > Toggle Auto Layout to reorganize elements
• Check that the selected element has diagram content

Related Documentation¶

The following documents from the LOSA Portal provide additional context for working with SysML models and IDL generation:

Access these documents at https://landopensystems.mod.gov.uk
