Defence

Defence (DEF)

The Defence functional area (F3) provides threat detection, classification, and tracking displays. It integrates with the DDS Battlespace Objects domain to present real-time threat information to the operator.

Radar View

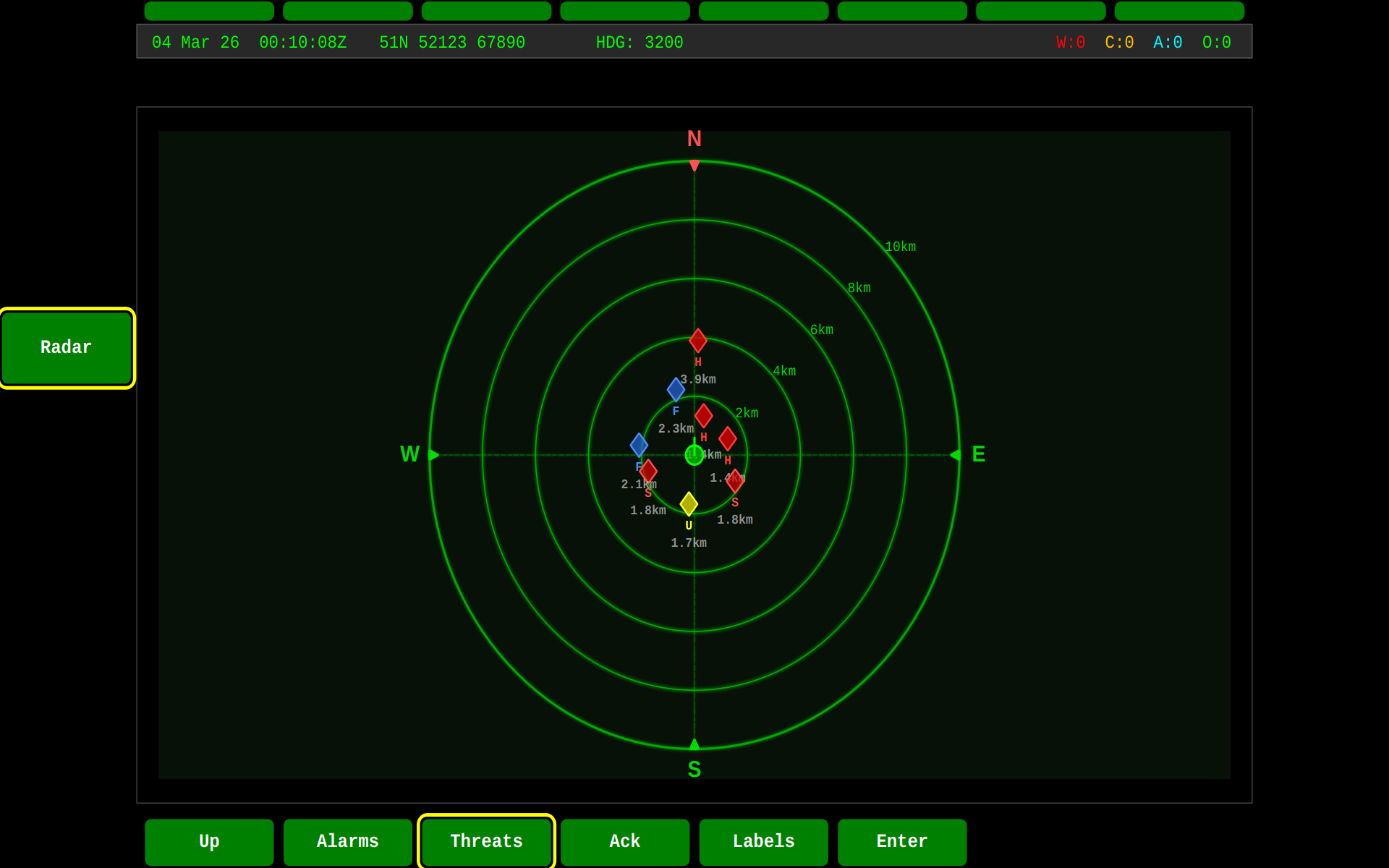

The DEF screen features a top-down Radar View widget that displays a plan position indicator (PPI) centred on the vehicle's position. Threats appear as colour-coded diamond markers positioned by bearing and range:

Threat Radar

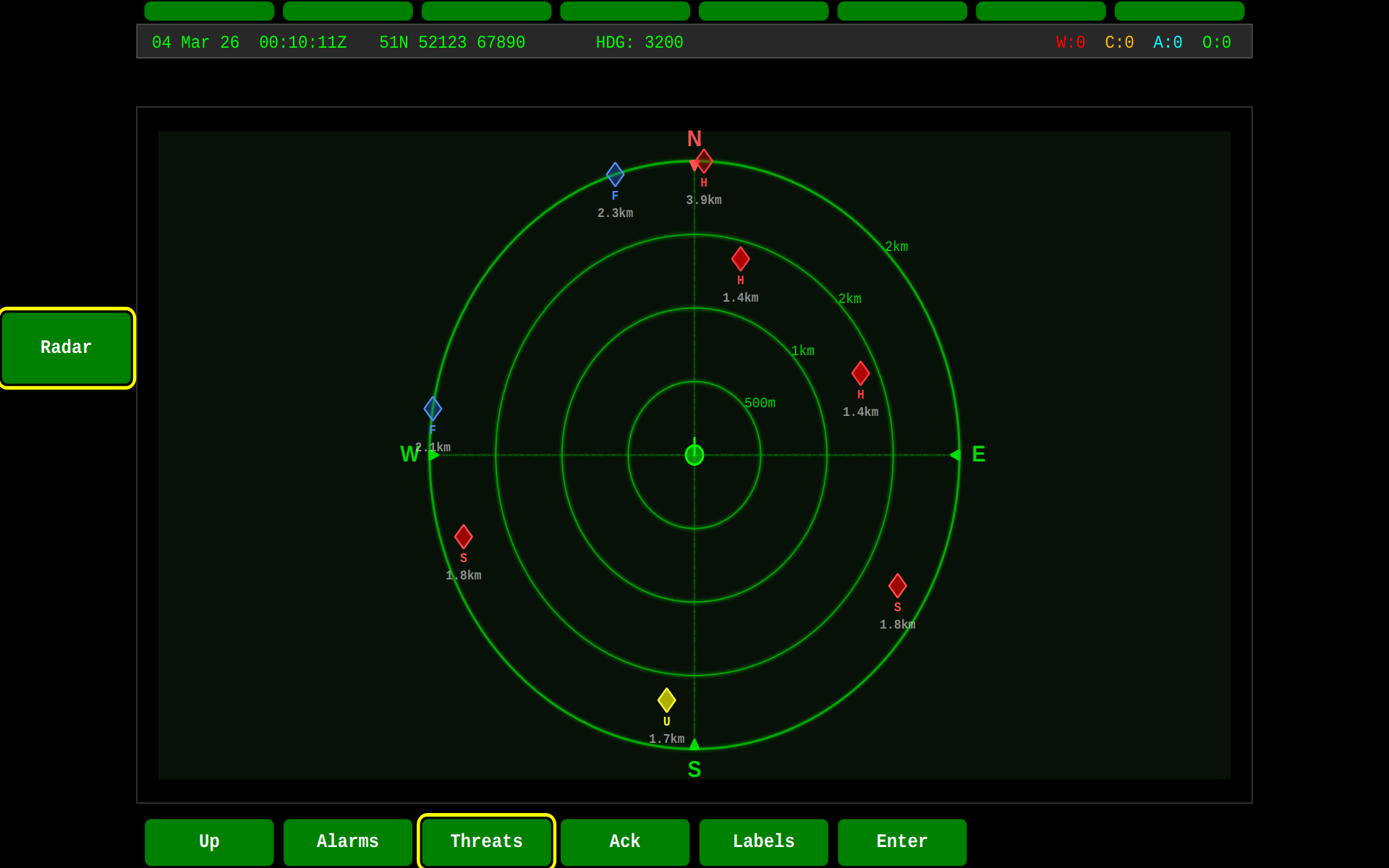

The zoomed view provides greater detail for closer threats, toggled with F2:

Threat Radar Zoom

Radar features:

  • Range rings at 2 km intervals (5 rings out to 10 km)
  • N/S/E/W compass markers that rotate with vehicle heading
  • Threat diamonds colour-coded by hostility:
    • Red — Hostile
    • Orange — Suspect
    • Yellow — Unknown
    • Green — Neutral
    • Blue — Friendly
  • Click-to-zoom toggle for close-range inspection

Threat Table

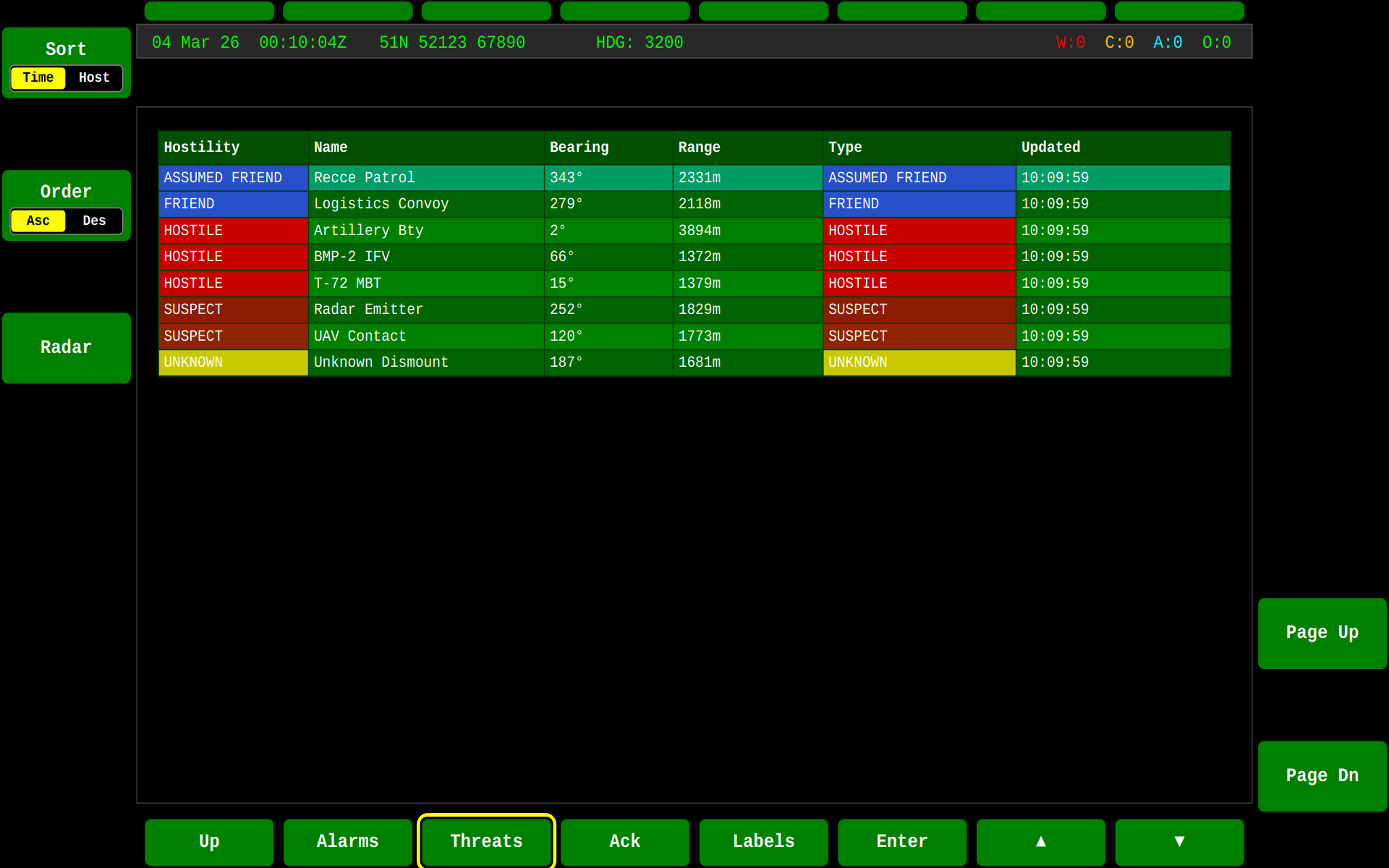

The tabular view lists all tracked battlespace objects with hostility classification, bearing, range, object type, and last update time:

Threat Table

LSAS Strip Threat Overlay

When the LSAS camera strip is visible, threat indicators are overlaid directly onto the camera thumbnails. Each threat diamond appears at the bearing position on the corresponding camera view, giving the operator immediate visual correlation between the camera feed and detected threats.

  • Closer threats appear lower on the thumbnail (near the direction bar)
  • Distant threats appear near the top
  • Colour coding matches the radar hostility scheme
  • Labels show threat identifiers (e.g. "H1", "S2") and range in metres

See Threats for the complete threat lifecycle and display details.

DEF Controls

Key Action
F3 Switch to DEF screen
F2 Toggle radar zoom
  • Threats — Threat lifecycle, DDS topics, and display integration
  • PPI Widget — Radar overlay styles and configuration
  • SA — Situational Awareness with PPI overlay
