Systems (SYS)

The Systems functional area (F4) provides access to vehicle subsystem status, diagnostics, and configuration.

ASLAV System View

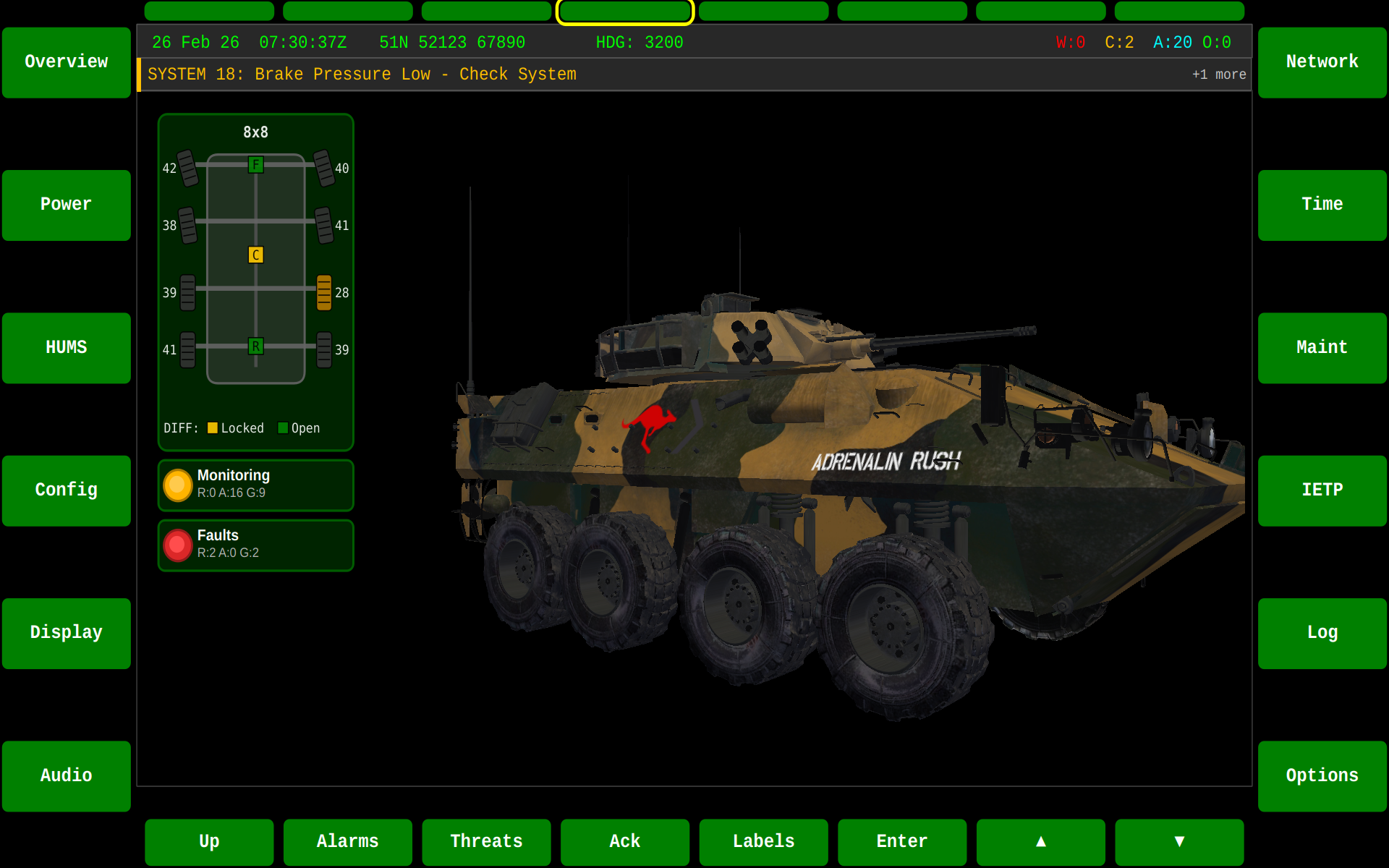

The Systems display shows a 3D interactive vehicle model with real-time subsystem status:

ASLAV System Display

Features

The Systems display provides:

  • Subsystem health status — Visual indicators for each vehicle subsystem
  • Component connectivity — Network and bus status for CAN, Ethernet, and serial devices
  • Configuration parameters — Vehicle configuration and preset management
  • Diagnostic information — Fault codes, maintenance status, and system logs

3D Vehicle Model

When built with HAS_OPENGL_VEHICLE, the SYS screen renders an interactive 3D model of the vehicle. The model shows:

  • Colour-coded subsystem status (green = OK, amber = degraded, red = fault)
  • Wheel/track sensor readings via the WheelsWidget
  • Clickable components for drill-down diagnostics

SYS Controls

Key Action
F4 Switch to SYS screen
  • Alarms — Alarm display and acknowledgement
  • UACM Service — User Access Control for system configuration
